bluetooth player module

Top Handsfree DC 5V 18V MP3 Decoder Board 50W Amplifier Bluetooth Car MP3 Player USB Recording Module FM AUX Radio For Speaker

Fuction:

VOL-: Short press to select the previous song; long press to decrease the volume

VOL+: Short press to select the next song; long press to increase the volume

PLAY/PAUSE: Short press to switch between pause and play; long press to switch between USB / TF / FM / LINE IN / BLUETOOTH

5V Description:

Power: 2*3W

Voltage: DC 5V

Current: 2A

Bluetooth version: Bluetooth 5.0

Support: call function

Radio FM frequency: 87.5—107.5 MHz

USB: Connect U disk (maximum support 32GB)

Music format: MP3/WMA/WAV/FLAC/APE lossless format music

Size:71*22MM

3.7V-5V Description:

Power: 2*3W

Voltage: DC 3.7V-5V

Current: 0.5A-2A

Bluetooth version: Bluetooth 5.0

Support: call function

Support: recording function

Support: support power-off memory

Support: Folder Play

Radio FM frequency: 87.5—107.5 MHz

Screen: color screen

USB: Connect U disk (maximum support 32GB)

Music format: MP3/WMA/WAV/FLAC/APE lossless format music

6V-18V Description:

Power: 2*25W

Voltage: DC 6V-18V

Current: 1A-3A

Bluetooth version: Bluetooth 5.0

Support: call function

Support: recording function

Support: support power-off memory

Support: Folder Play

Radio FM frequency: 87.5—107.5 MHz

Screen: color screen

USB: Connect U disk (maximum support 32GB)

Music format: MP3/WMA/WAV/FLAC/APE lossless format music

6V-12V Description:

Power: 2*25W

Voltage: DC 6V-12V

Current: 1A-3A

Bluetooth version: Bluetooth 5.0

Support: call function

Support: recording function

Support: support power-off memory

Support: Folder Play

Radio FM frequency: 87.5—107.5 MHz

Screen: digital color screen

USB: Connect U disk (maximum support 32GB)

Music format: MP3/WMA/WAV/FLAC/APE lossless format music

Size: 92*41MM

6V-12V Description:

Power: 2*25W

Voltage: DC 6V-12V

Current: 1A-3A

Bluetooth version: Bluetooth 5.0

Support: call function

Support: recording function

Support: support power-off memory

Support: Folder Play

Radio FM frequency: 87.5—107.5 MHz

Screen: normal screen

USB: Connect U disk (maximum support 32GB)

Music format: MP3/WMA/WAV/FLAC/APE lossless format music

6V-12V Description:

Power: 2*3W

Voltage: DC 6V-12V

Current: 1A-3A

Bluetooth version: Bluetooth 5.0

Support: call function

Support: recording function

Support: support power-off memory

Support: Folder Play

Radio FM frequency: 87.5—107.5 MHz

Screen: normal screen

USB: Connect U disk (maximum support 32GB)

6V-12V Description:

Power: 2*25W

Voltage: DC 6V-12V

Current: 1A-3A

Bluetooth version: Bluetooth 5.0

Support: call function

Support: recording function

Support: support power-off memory

Support: Folder Play

Radio FM frequency: 87.5—107.5 MHz

Screen: normal screen

USB: Connect U disk (maximum support 32GB)

Music format: MP3/WMA/WAV/FLAC/APE lossless format music

6V-18V Description:

Power: 2*20W

Voltage: DC 6V-18V

Current: 1A-3A

Bluetooth version: Bluetooth 5.0

Support: call function

Support: recording function

Support: support power-off memory

Support: Folder Play

Radio FM frequency: 87.5—107.5 MHz

Screen: color screen

USB: Connect U disk (maximum support 32GB)

Music format: MP3/WMA/WAV/FLAC/APE lossless format music

Size: 93*25MM

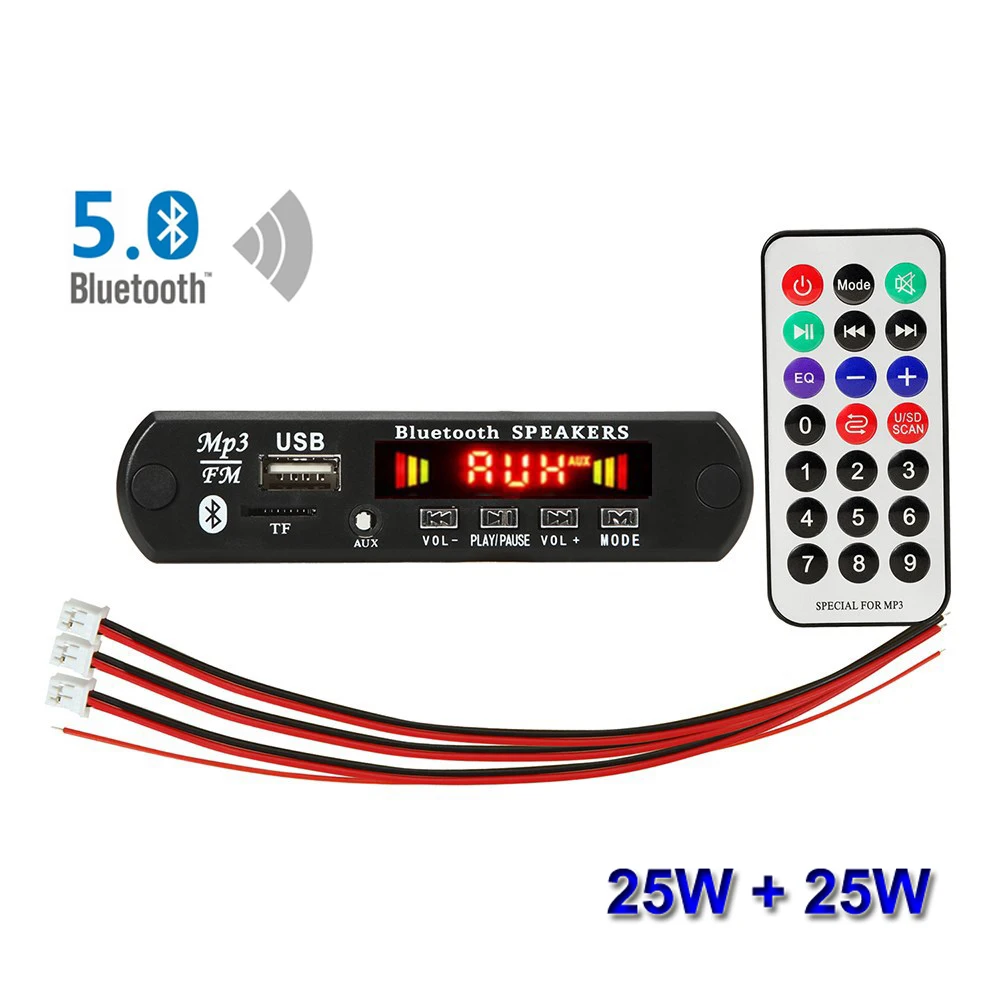

2*25W Bluetooth Amplifier Mp3 Decoder Board Car MP3 Player USB Record Module FM Radio AUX for Speaker Handsfree Audio DIY

Descriptions:
1. Audio Input: BT 5.0 / FM Radio / USB / AUX / TF Card
2. USB/TF: 32G Max
3. Support Music Format MP3 / WAV / APE / FLAC
4. FM Radio: Long Press the Pause/Play button to scan stations, and Long Press the Pause/Play button to select the staion.
5. FM Frequency: 87.5-108MHz
6. Calls :Long press the pause button to answer calls.
7. Recording:When in TF or USB mode,Long press the MODE button to start recording, long press the MODE button to cancel and play the recording file, Long press the Pause/Play button to exit. U disk or TF card is needed when recording.
8. Support power off memory
9. Support folder selection and playback. When USB or TF is playing, Double Click the Prev or the next button to select the folder.

Package included:
1 * MP3 Decoder Board
1 * Remote Control (without battery)
1 * Cables

DC 5V 18V 50W Amplifier MP3 Decoder Board Bluetooth5.0 Car MP3 Player USB Recording Module FM AUX Radio For Speaker Handsfree

kebidu DC 5V 18V 50/40W Amplifier MP3 Decoder Board Bluetooth V5.0 Car MP3 Player USB Recording Module FM AUX Radio For Speaker Handsfree

Key Description:

USB: Connect U disk (maximum support 32GB, not included)

LED: Digital color screen display, red infrared receiver module

TF: Connect TF memory card (maximum support 32GB, not included)

AUX: Audio input interface

VOL-: Short press is to select the previous song; long press is to decrease the volume

PLAY/PAUSE: Short press is to switch between pause and play; long press is to automatically search for radio FM

VOL+: Short press is to select the next song; long press is to increase the volume

MODE: USB/TF/FM/AUX/BLUETOOTH sound switch

Package included:

1 x MP3 Decoder Board

1 x Remote Control (without battery)

1 x Cables

1. Bluetooth version 5.0
2. Support calls (long press the pause button to answer the call when there is an incoming call).
3. Support recording. Recording only supports operation in TF mode or USB mode.
(Long press the MODE button to start recording, long press the MODE button again to cancel the recording and play the recording file; exit the recording mode and long press the pause button to exit. When recording, you need to connect a storage device, such as: U disk or TF card;)
4. Support power off memory
6. The power supply voltage supports between DC6v-12v, and the current is between 1-3A.
7. Can be directly connected to the speaker, with power amplifier and Bluetooth decoding function.
8. Support song format MP3 / WAV / APE / FLAC
9. Main functions MP3/USB/TF/LINE IN/FM/BLUETOOTH/remote control/
10. Power 50W, true stereo 2*25W.
11. Support folder selection and playback. When USB or TF is playing, when there is a folder in the device and there are songs in the folder, press the previous button or the next button twice to select the folder to play the song, and the screen will display F001-F00N

1. Bluetooth version 5.0

2. Support calls (long press the pause button to answer the call when there is an incoming call).

3. Support recording. Recording only supports operation in TF mode or USB mode.

(Long press the MODE button to start recording, long press the MODE button again to cancel the recording and play the recording file; exit the recording mode and long press the pause button to exit. When recording, you need to connect a storage device, such as: U disk or TF card;)

4. Support power off memory

5. The power supply voltage supports between DC 6v-12v, and the working current is between 1-2A.

6. Can be directly connected to speakers, with power amplifier and decoding functions.

7. Support song format MP3 / WAV / APE / FLAC

8. Main functions MP3/USB/TF/LINE IN/FM/BLUETOOTH/remote control/

9. Power 6W, true stereo 2*3W.

10. Support folder selection and playback. When USB or TF is playing, there is a folder in the device and there are songs in the folder. Press the previous button or the next button twice to select the folder to play the song, and the screen will display F001-F00? and so on, yes? F00 is displayed for each folder? .

1. Bluetooth version 5.0
2. Support calls (long press the pause button to answer the call when there is an incoming call).
3. Support recording. Recording only supports operation in TF mode or USB mode.
(Long press the MODE button to start recording, long press the MODE button again to cancel the recording and play the recording file; exit the recording mode and long press the pause button to exit. When recording, you need to connect a storage device, such as: U disk or TF card;)
4. Support power off memory
6. The power supply voltage supports between DC6v-12v, and the current is between 1-3A.
7. It can be directly connected to the speaker, with power amplifier and Bluetooth decoding function.
8. Support song format MP3 / WAV / APE / FLAC
9. Main functions MP3/USB/TF/LINE IN/FM/BLUETOOTH/remote control/
10. Power 50W, true stereo 2*25W.
11. Support folder selection and playback. When USB or TF is playing, there is a folder in the device and there are songs in the folder. Press the previous button or the next button twice to select the folder to play the song, and the screen will display F001-F00? and so on, yes? F00 is displayed for each folder? .

Package include:

1 X MP3 WMA WAV Decoder Board

1 x Remote control (without batteries)

1. Bluetooth version 5.0

2. Support calls (long press the remote control pause button to answer the call when there is an incoming call).

3. Support 3.5MM head microphone function

4. Support recording. Recording only supports operation in TF mode or USB mode.

(Long press the remote control MODE button to start recording, long press the remote control PLAY button to switch between recording and music playback; when recording, you need to connect a storage device, such as: U disk or TF card;) 5. Support power off memory

5. The power supply voltage supports between DC 6v-12v, and the current is between 1-3A.

6. Can be directly connected to speakers, with power amplifier and decoding functions.

7. Support song format MP3 /WMA / WAV / APE / FLAC

8. Main functions MP3/USB/TF/LINE IN/FM/BLUETOOTH/remote control/

9. Power 40W, stereo 2*20W.

10. Support folder selection and playback. When USB or TF is playing, when there is a folder in the device and there are songs in the folder, press the previous button or the next button twice to select the folder to play the song, and the screen will display F001-F00? and so on, yes? F00 is displayed for each folder? .

DC 5V

Bluetooth version: Bluetooth 5.0
With Bluetooth call function, power supply voltage is 5V, current requirement is above 2A
Music format: MP3 / WMA / WAV / FLAC / APE lossless format music
Power: 2*3W, connect 2 3W speakers
Radio FM frequency: 87.5-107.5 MHZ
Support function introduction: support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / DC 5V
About the structure: Panel size: 71 * 22 MM, the depth of the board is 26 MM, the distance between the two screw positioning holes is 59MM

DC 7V-22V

Product parameters:

Model: JX-Y04 (2*50W stereo, power supply 7V-22V)

Size: 112*61MM

Function Description:

1. Bluetooth version 5.0

2. Support calling (long press the pause button to answer the call when there is a call).

3. Support recording. Recording only supports operation in TF mode or USB mode.

When recording, you need to connect a storage device, such as: U disk or TF card;)

4. Support power-off memory

5. The power supply voltage supports between DC 7v-22v, and the current is between 1-4A.

6. Can be directly connected to speakers

7. Support song format MP3/WMA/WAV/APE/FLAC

8. Main functions MP3/USB/TF/LINE IN/FM/BLUETOOTH/remote control/

9. Power 100W, stereo 2*50W.

10. Support folder selection to play. When USB or TF is playing, there is a folder in the device and there are songs in the folder. Press the previous button or the next button twice to select the folder to play songs, and the screen will display F001-F00? and so on, yes? A folder displays F00? .

DC 8V-24V

Stereo output power:

1. 2*40W (VDD=23V, RL=8 Ω)

2. 2*30W(VDD=16V), RL=4Ω

3. 2*20W(VDD=12V), RL=4Ω

Bass output power:

1. 80W (VDD=23V, RL=4 Ω)

2. 64W (VDD=21V, RL=4 Ω)

3. 47W (VDD=18V, RL=4 Ω)

Function Description:

Size: 112*61MM

1. Bluetooth version 5.0

2. Support calling (long press the pause button to answer the call when there is a call).

3. Support recording. Recording only supports operation in TF mode or USB mode.

(Long press the MODE button to start recording, long press the MODE button again to cancel the recording and play the recorded file; exit the recording mode and long press the pause button to exit. When recording, you need to connect a storage device, such as a U disk or TF card;)

4. Support power-off memory

5. The power supply voltage supports between DC 8v-24v, and the current is between 1-4A.

6. Can be directly connected to speakers

7. Support song format MP3/WMA/WAV/APE/FLAC

8. Main functions MP3/USB/TF/LINE IN/FM/BLUETOOTH/remote control/

9. Stereo 2*40W. Woofer power 80W

Time setting operation method: short press the clock button, enter the clock mode, the screen flashes at the hour number position, then use the next button and the previous button to adjust the time to be set, and then short press the clock mode to enter the minute setting. After the adjustment is completed, press the clock button again to confirm the current time setting.

Operation method of alarm clock setting: short press the alarm button to enter the alarm mode and the screen flashes at the hour number position, then use the next button and the previous button to adjust the time to be set, and then short press the alarm mode to enter the minute setting. Also use the previous button to down After the adjustment is completed, short press the alarm button again, and the screen will display NO (continue)/OFF (close). When the alarm clock rings, short press the alarm button to cancel the alarm reminder.

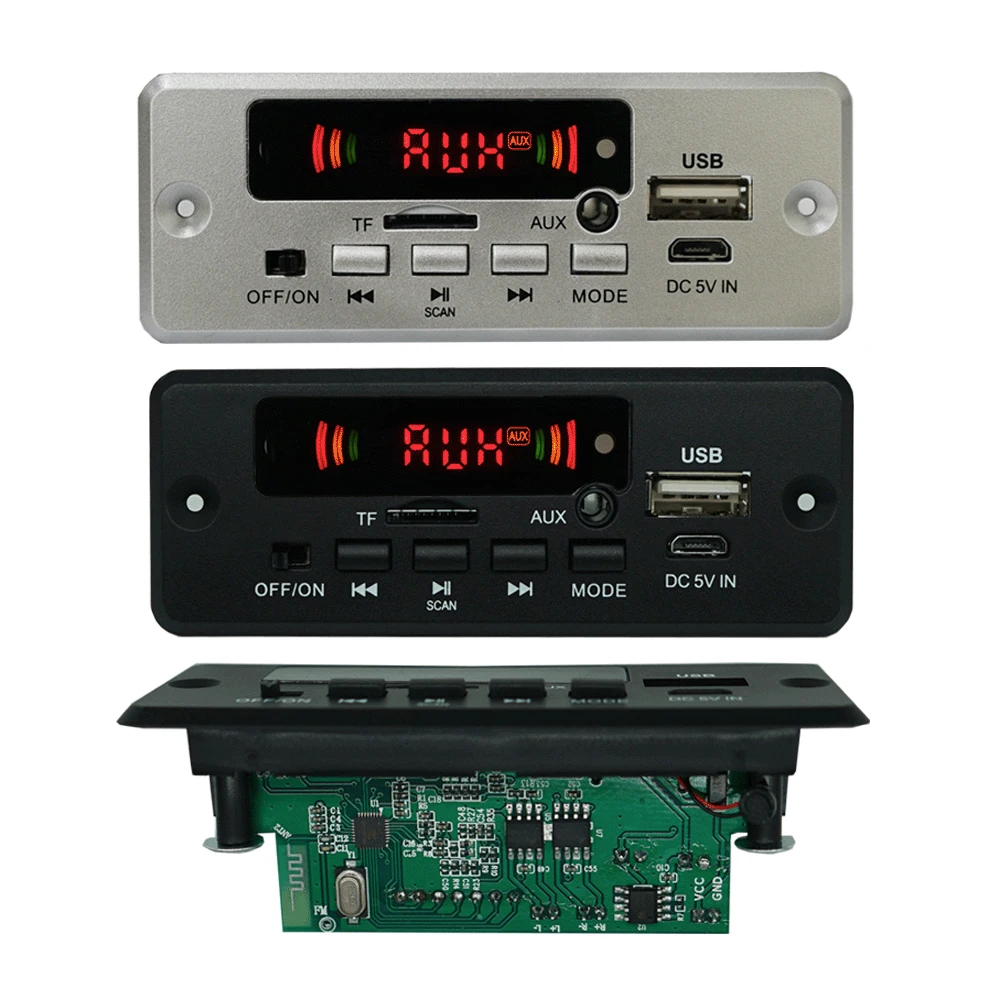

12V Wireless Bluetooth 5.0 MP3 WMA Decoder Board Audio Module Support USB TF AUX FM Recording function For Car accessories

Description:

With bluetooth audio receiver module, when cell phone and bluetooth module matching contion, the MP3 or nondestructive APE files via bluetooth sent to the product of the bluetooth receiver module to play, which has greatly helped the function of the product and entertainment. This product also be like ordinary MP3 decoder board,play U disk or TF card MP3 files, as well as the radio broadcast.

Feature:

USB: Connect to U disk (maximum support 32GB,not included)

LED Color Screen: Digital Screen Display, Red Screen Display

Infrared receiving module

TF: Connect to TF memory card (maximum support 32GB,not included)

AUX: Audio Input Interface

VOL-: Short press is the last song; Long press is to reduce the volume

PLAY/PAUSE: Short press is the switch between pause and playback; Long press is the radio FM automatic station.

VOL+: Short press is to choose the next song; Long press is to increase the volume.

MODE: Switchover of USB/TF/FM/LINE IN/BLUETOOTH Voice

Master IC: AC6926

Bluetooth IC: AC6926 Bluetooth 5.0

Music format: MP3/WMA/WAV/FLAC/APE

Power: 2*3W, connected to two 3W speakers

Radio FM Frequency: 87.5-107.5 MHZ

Introduction of Support Functions: Support MP3/USB/TF/LINE IN/FM/BLUETOOTH/Remote Control/DC 12V,32V

About structure: panel size: 93mm*36mm, panel corner and screw hole position, then cover surface, the depth of the board is 33 MM

Description of recording function

1. Press the MODE button for a long time to start recording, and then press the MODE button for a long time to cancel recording function.

2. Press the PLAY/PAUSE key to play the recording file.

3. When recording, it is more necessary to connect a storage device, such as a U disk or a TF card.

Package included:

1 x MP3 WMA WAV Decoder Board

1 x Remote control (without batteries)

1 x Cables

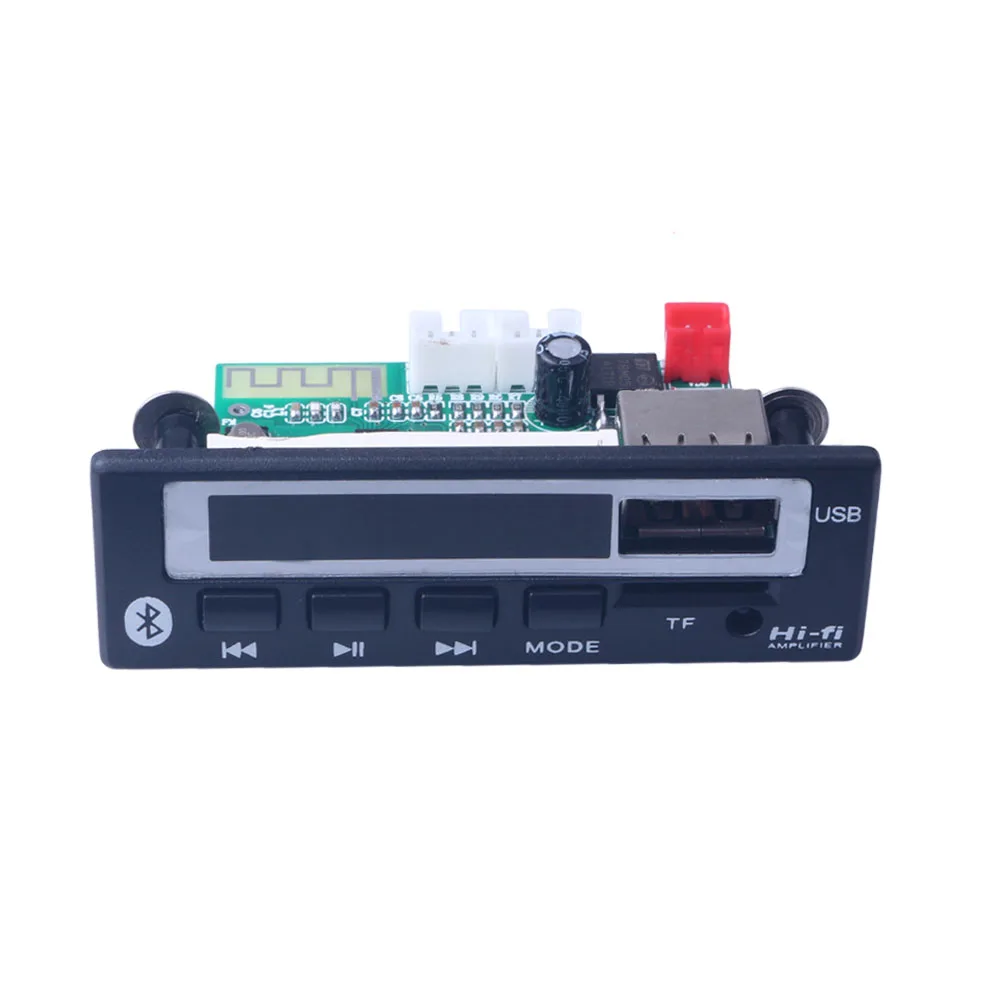

MP3 Decoder Board Car USB Bluetooth MP3 Player Module AUX Radio Car Integrated Remote Control

MP3 Decoder Board Car USB Bluetooth MP3 Player Module AUX Radio Car Integrated Remote Control

1, double decoding supports MP3 / WMA / WAV / APE lossless format music;

2, support Bluetooth function, Bluetooth version 5.0;

3, with a color screen digital tube display;

4, support MMC / SD / MMA and other cards, support USB interface (U disk);

5, power failure memory function;

6, support 5-10 meters distance infrared remote control operation;

7, support for external audio input LINE IN (AUX);

8, support radio FM, receiving frequency band (87.5MHZ-108.0MHZ);

9, button: four-button multi-directional control, VOL- / AUTO / VOL + / MODE;

Second, the button operation details

1. VOL-button (previous song/volume reduction): In MP3 state, VOL-short press is the previous song, long press is for volume reduction; in FM state, short press is to adjust one station number; in Bluetooth Short press under the function is the last song of Bluetooth, long press to decrease the volume.

2. AUTO button (play/pause): In the MP3 state, AUTO short press is play/pause; in FM state, short press is to automatically receive the

station and save the station, long press no function; short press to play/pause under Bluetooth function .

3, VOL + button (the next song / volume increase): In the MP3 state, VOL + short press for the next song, long press for the volume to

increase; short press in the FM state to adjust a station number; under the Bluetooth function Short press for the next song of Bluetooth,

long press for the volume to decrease.

4, MODE button: switch between USB / TF / FM / AUX / Bluetooth function

1*Hot MP3 Decoder Board Bluetooth Module Car USB MP3 Player USB Aux Radio for Car Integrated Remote Control iamge details横栏

Wireless Bluetooth 5.0 9V-12V MP3 WMA Decoder Board Car Audio USB TF FM Radio Module Color Screen MP3 Player with Remote Control

Note:
1.This product does not have a power amplifier. When connecting, you must first connect the power amplifier, and then connect the speaker

FM Frequency Range (International): 76Mhz-108MHz

USB: Connect USB flash drive (maximum support 32GB, not included)

LED color screen: digital screen display, showing red

Infrared receiving module

TF: Connect TF memory card (maximum support 32GB, not included)

AUX: audio input interface

VOL-: Short press is to select the previous song; long press is to decrease the volume

PLAY/PAUSE: Short press is the switch between pause and play; long press is the FM FM automatic station

VOL+: Short press is to select the next song; long press is to increase the volume

MODE: Switching of USB/TF/FM/LINE IN/BLUETOOTH

Package include:

1 X MP3 Decoder Board

1 x Remote control (Without the Battery, no retail package)

2*25W 50W amplifier Car Audio USB TF FM Radio Module Bluetooth 12V MP3 WMA Decoder Board MP3 Player with Remote Control

1. Bluetooth version 5.0
2. Support calls (long press the pause button to answer the call when there is an incoming call).
3. Support recording. Recording only supports operation in TF mode or USB mode.
(Long press the MODE button to start recording, long press the MODE button again to cancel the recording and play the recording file; exit the recording mode and long press the pause button to exit. When recording, you need to connect a storage device, such as: U disk or TF card;)
4. Support power off memory
6. The power supply voltage supports between DC 6v-12v, and the current is between 1-3A.
7. Can be directly connected to speakers, with power amplifier and decoding functions.
8. Support song format MP3 /WMA / WAV / APE / FLAC
9. Main function MP3/USB/TF/LINE IN/FM/BLUETOOTH/remote control
10. Power 50W, true stereo 2*25W.
11. Size: 92*41MM
12. Single weight: 41G

Key Description:
USB: Connect U disk (maximum support 32GB, not included)
LED: Digital color screen display, red infrared receiver module
TF: Connect TF memory card (maximum support 32GB, not included)
AUX: Audio input interface
VOL-: Short press is to select the previous song; long press is to decrease the volume
PLAY/PAUSE: Short press is to switch between pause and play; long press is to automatically search for radio FM
VOL+: Short press is to select the next song; long press is to increase the volume
MODE: USB/TF/FM/AUX/BLUETOOTH sound switch

Package included:
1 x MP3 Decoder Board
1 x Remote Control (without battery)
1 x Cables

HC-05 HC-06 RF Wireless Bluetooth Transceiver Slave Module HC05 / HC06 RS232 / TTL to UART Converter and Adapter For Arduino

HC-05

It's HC-05 Bluetooth module Slaveand master two in one module.

This module can be set to a transmitter or receiver, transmitter could pairing with receiver , receiver and receiver or transmitter and transmitter can't communication between, receiver could pairing with computers and cell phone bluetooth , when buying, the default for receiver.

Use the CSR mainstream Bluetooth chip, Bluetooth V2.0 protocol standards.

Module working voltage 3.3 V.

Potter default rate of 9600, the user can be set up.

The core module size : 28 mm x 15 mm x 2.35 mm.

Working current: matching for 30 MA, matching the communication for 8 MA.

Dormancy current: no dormancy.

Used for GPS navigation system, water and electricity gas meter reading system.

With computer and Bluetooth adapter, PDA, seamless connection equipment

Commercial Series: Bluetooth module board Series

With LED indicator light, use 150mA and 3.3V regulation chip.

With VCC.GND.TXD.RXD foot for the Bluetooth

With "Re-search" button(ON/OFF/WAKE foot for it , external MCU out/input "High level" can control module to re-search)

Compatible with Bluetooth master module "slave module" or master-slave(whole) module.

Input voltage: 3.3 -6V

Size: 1.55cm * 3.98cm

Note:

Input power supply 3.3~6V, Prohibit more than 7V

No "Automatically prevent power supply peversing func", so please correctly connect power supply

We advise to install "Bluetooth master module"

The "State" is output foot for LED status, when Bluetooth "Unconnected", output "Pulse", when Bluetooth "connected", output "High level", we can determine the states from "MCU"

If only the board, No any "Bluetooth Function"

HC-06

This's HC-06 Bluetooth module.

Allows your device to both send or receive the TTL data via Bluetooth technology without connecting a serial cable to your computer.

Feature:

Works with any USB Bluetooth adapters.

Default Baud Rate: 9600,8,1,n.

Built in antenna.

Coverage up to 30ft.

Bluetooth version: V2.0+EDR

Operating voltage: 3.3V

Default Baud Rate: 9600,8,1,n.

Signal coverage: 30ft

Cable length: 21.5cm

Item size: 4.3 * 1.6 * 0.7cm

Item weight: 3g

Package size: 9 * 3 * 1cm

Package weight: 8g

Commercial Series: Bluetooth module board Series

With LED indicator light, use 150mA and 3.3V regulation chip.

With VCC.GND.TXD.RXD foot for the Bluetooth

With "Re-seach" button(ON/OFF/WAKE foot for it , external MCU outinput "High level" can control module to re-seach)

Compatible with bluetooth master module".slave module"or master-slave(whole) module.

Input voltage: 3.3~6V

Size: 1.55cm*3.98cm

Note:

Input power supply 3.3~6V, Prohibit more than 7V

No "Automatically prevent power supply peversing func", so please correctly connect power supply

We advise to install "Bluetooth master module"

The "State" is output foot for LED status, when bluetooth "Unconnected", output "Pulse" ; when bluetooth "connected", output "High level", we can determine the states from "MCU"

If only the board , No any "Bluetooth Function"

NEW HC-05 HC 05 hc-06 HC 06 RF Wireless Bluetooth Transceiver Slave Module RS232 / TTL to UART converter and adapter for arduino

HC-05

It's HC-05 Bluetooth module Slaveand master two in one module.

Use the CSR mainstream Bluetooth chip, Bluetooth V2.0 protocol standards.

Module working voltage 3.3 V.

Potter default rate of 9600, the user can be set up.

The core module size : 28 mm x 15 mm x 2.35 mm.

Working current: matching for 30 MA, matching the communication for 8 MA.

Dormancy current: no dormancy.

Used for GPS navigation system, water and electricity gas meter reading system.

With computer and Bluetooth adapter, PDA, seamless connection equipment

Commercial Series: Bluetooth module board Series

With LED indicator light, use 150mA and 3.3V regulation chip.

With VCC.GND.TXD.RXD foot for the Bluetooth

With "Re-search" button(ON/OFF/WAKE foot for it , external MCU out/input "High level" can control module to re-search)

Compatible with Bluetooth master module "slave module" or master-slave(whole) module.

Input voltage: 3.3 -6V

Size: 1.55cm * 3.98cm

Note:

Input power supply 3.3~6V, Prohibit more than 7V

No "Automatically prevent power supply peversing func", so please correctly connect power supply

We advise to install "Bluetooth master module"

The "State" is output foot for LED status, when Bluetooth "Unconnected", output "Pulse", when Bluetooth "connected", output "High level", we can determine the states from "MCU"

If only the board, No any "Bluetooth Function"

HC-06

This's HC-06 Bluetooth module.

Allows your device to both send or receive the TTL data via Bluetooth technology without connecting a serial cable to your computer.

Feature:

Works with any USB Bluetooth adapters.

Default Baud Rate: 9600,8,1,n.

Built in antenna.

Coverage up to 30ft.

Bluetooth version: V2.0+EDR

Operating voltage: 3.3V

Default Baud Rate: 9600,8,1,n.

Signal coverage: 30ft

Cable length: 21.5cm

Item size: 4.3 * 1.6 * 0.7cm

Item weight: 3g

Package size: 9 * 3 * 1cm

Package weight: 8g

Commercial Series: Bluetooth module board Series

With LED indicator light, use 150mA and 3.3V regulation chip.

With VCC.GND.TXD.RXD foot for the Bluetooth

With "Re-seach" button(ON/OFF/WAKE foot for it , external MCU outinput "High level" can control module to re-seach)

Compatible with bluetooth master module".slave module"or master-slave(whole) module.

Input voltage: 3.3~6V

Size: 1.55cm*3.98cm

Note:

Input power supply 3.3~6V, Prohibit more than 7V

No "Automatically prevent power supply peversing func", so please correctly connect power supply

We advise to install "Bluetooth master module"

The "State" is output foot for LED status, when bluetooth "Unconnected", output "Pulse" ; when bluetooth "connected", output "High level", we can determine the states from "MCU"

If only the board , No any "Bluetooth Function"

Bluetooth 5.0 MP3/WMA/WAV/APE/FLAC Decoder Board Car Audio USB TF FM Radio Module MP3 Bluetooth Music Player

Note:
This product does not have a power amplifier. When connecting, you must first connect the power amplifier, and then connect the speaker

Specifications:
1,Double decoding,support MP3/WMA/WAV/APE/FLAC format music;
2,Bluetooth music and Wireless Bluetooth call function;
3,Display with digital tube;
4,Support USB/TF card;
5,Power off memory function;
6,Support 5-10 meters distance infrared remote control operation;
7,Support LINE-IN(AUX)/ LINE-OUT;
8,Support FM(76MHZ-108.0MHZ);
9,Buttons:VOL-/ AUTO / VOL+ / MODE;
10,Support power automatic protection system(the PCBA will not burn out if the positive and negative power is reverse,it only not
working);
11,The highest volume level is 30;
12,Power supply: DC5V / 12V. It can work on 5V and 12V.

Button Operation Instructions:
1,Vol- button (last song / volume reduction): in MP3 state, vol- is short pressed for the last one, long press for vol-; in FM state, short press is to increase one stage number;
2,Auto button (play / pause): in MP3 state, auto is short to play / pause; in FM state, short press is playing / pause, long press is automatic receiving station;

3,Vol+ button (next song / volume increase): in MP3 state, Vol is short pressed for next song, long press for vol+; in FM state, short press is to lower a stage number;
4,MODE button: switch between USB/TF/FM/AUX/BT functions in turn.

Package Included:
1*Mp3 Player Decoder
1*Remote Control (Without the Battery)
1*Cables
