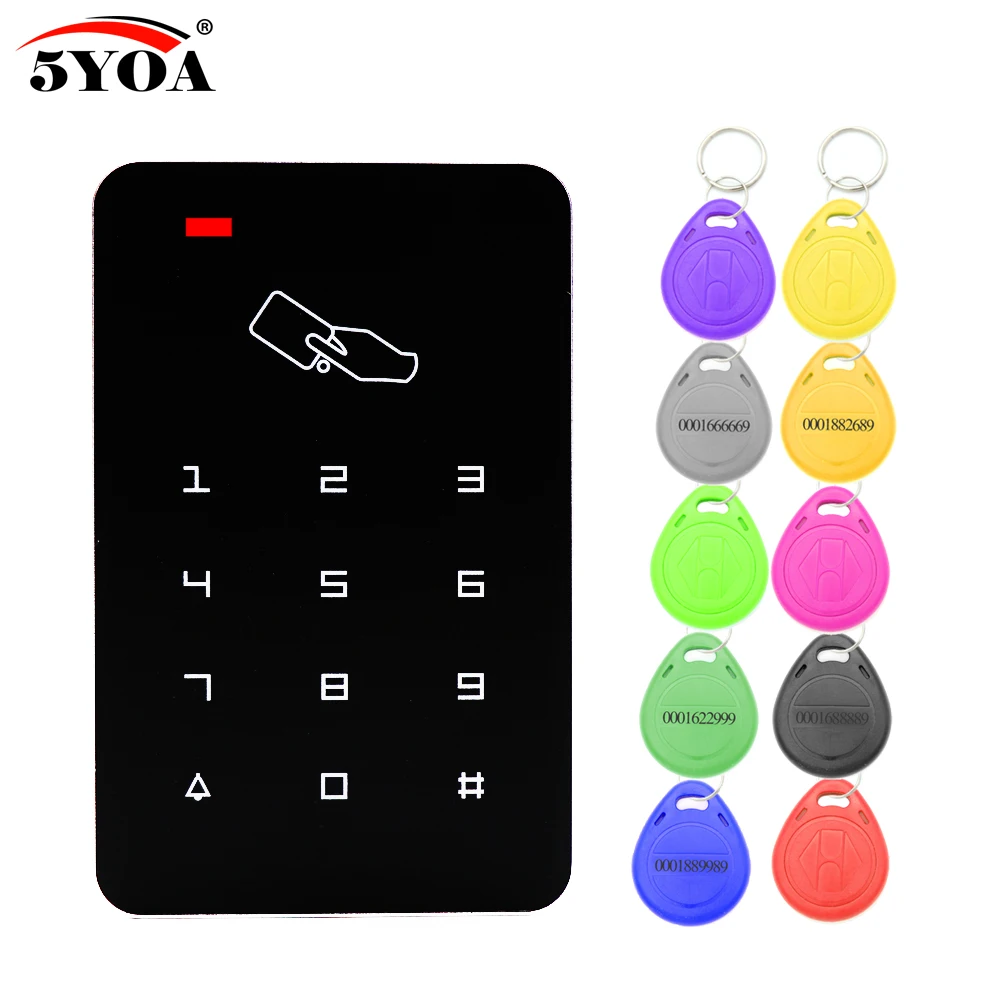

B10 RFID Access Control

High quality and high security.
Sensitively and response quickly.
Support 500 standard users.
Support card password, card plus password & password plus card.
Can add card number and delete card number as your requirement.
With 10 pcs of Key fobs.
Classical appearance with useful function.
Professional design, great for home and office , come with user manual
Ideal for homes and offices
Specification:
Working voltage:for DC 12V
Unlock current: <1000mA
Static current: <60mA
Memory: 250 standard users
Card read distance: 0-10 cm
RF type: EM card
Working temperature: -10 ~ 70 C
Working bumidity: 10% to 90%
3 options to open your door (admin user selectable): Card (Key Tag) & Password/ Card (Key Tag) Only/ Password Only

12V5A Access Control Power Supply

This is a 90V-260V(12V5A) Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-IC Reader .etc.

It controls electric lock directly.
Can reduce the load of access controller, save wiring to reduc the hidden trouble
Set NC / NO outputs, can control various types of electric locks
Based delay control circuit, lock time can be in 0-15 seconds
Automatic protection function, unexpected situations such as when the power supply short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off
Operative device: E/M Lock, Access Controller, Exit Push Button

180KG Magnetic Lock

Use magnetic power to lock the door, 180kg(350lbs) holding force (can add fee to upgrade to 280kg 350kg 500kg etc).
Built-in reverse current protection device (MOV).
Alluminum shell adopts high strength material, with hard anodised processing.
Corrosion resistant.
Good quality and durable to use.
Can be opened by push button, remote controller, etc.
Fit for wooden door, metal door, glass door, fireproof door, etc.
Voltage: DC 12V
Current: 380-430mA
Working temperature: -10 to 55 Celsius degree (14 to 131 Fahrenheit degree)
Humidity: 0 to 95%
Working mode: power-on to lock

Bolt Lock

Secure mode: The door will lock while supplied with power, and unlock without power.
Especially suitable for glass doors.
It is made from durable and high aluminium alloy material, durable for use.
Special circuit design, the door will unlock until the power is cut off.
With no external interference, making it more stable and safer.
Material: Aluminium Alloy
Working Voltage: DC 12V
Start State: 750mA
Persistent State: 180mA

Float Bolt Lock

This door lock is special in design with durable material for Frameless door type. It can protect your home or business shops. Low operational and standby current.

Secure mode: The door will lock while supplied with power, and unlock without power.
It is made from durable and high aluminium alloy material, durable for use.
Special circuit design, the door will unlock until the power is cut off.
With no external interference, making it more stable and safer.

Door Exit Button

Dimensions: length 86x width 86x 25 (mm)
Input voltage: DC12V
Electrical performance: 3A@12VDC
Contact output: NOCOM contact
Durable test: five hundred thousand aging test qualified
Application: apply to all kinds of gate frame
Applicable temperature: -20 ~ +50
Applicable humidity: 95% ~ 0 (relative humidity)

RFID Keys

We have 10 colors as the picture showing, normally we will send by random mixed colors, if need customize the colors sending, please leave message to tell us.

Material: ABS
Dimensions: Approximately 35 x 29 x 50mm
Response frequency: 125 KHz,
Chip type: EM4100, TK4100
Operation Temperature : -40 - 85°C
Waterproof
Application scope: Public transportation, parking, ID identification, attendance system, ticketing, card payment, product logo, etc.
Each comes with Key ring included.
Each token pre-programmed with unique ID which is Laser printed

Access Control Kit Examples

B03 RFID Standalone Access Control

Classical standalone access control adopts high quality plastic material. Based on low power consumption and low cost. Suitable for household, office and department.
* High quality and high security
* Sensitively and response quickly
* Support 1000 standard users
* Support card, password, password plus card to open the door
* Has a door bell button
* Classical Appearance with useful function
* Doesn't need to connect on the computer, can works alone
* Application: Home/ hotel/ office/ department / apartment etc

Product Specifications
User Capicity: 1000 user cards
Dimension: 120mmx78mm×22mm(L×W×H)
Working Frequency: 125KHz or 13.56mhz for Choosing
Working Current: <100mA
Working Voltage: DC12
Working Temperature: -10 to +60
Reading Distance: 0-10cm
Relative Humidity: 20%-90%
